8x10cm Hole Gabion Mesh Basket Galvanized Anti Corrosive Stone Filled Q195

Name: 8x10cm Hole Gabion Mesh Basket Galvanized Anti Corrosive Stone Filled Q195
Brand: HBGB
Price: 1 USD

Wholesale 8x10cm Hole Gabion Mesh Basket Galvanized Anti Corrosive Stone Filled Q195 from china suppliers

Brand Name : HBGB

Model Number : Q195

Certification : ISO 9001

Place of Origin : China

MOQ : 50 PCS

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000 pcs per day

Delivery Time : 10-25days

Packaging Details : compacted before packaging, in bundle

Product name : Gabion box retaining wall

Optional Type : galvanized, pvc coated,galfan wire

Reinforced type : customized

Wire diameter : popular 2.7mm (2.0-4.0mm)

Hole shape : hexagonal

Hole size : 8 x 10 cm (standard)

Usage : Flood Control Retaining Wall

Feature : Corrosion Resistance

Factory or trader : factory

Contact Now

8X10CM Hole Galvanized Anti Corrosive Stone Filled Gabion Mesh Basket

Gabion Mesh Basket Profile:

Product Name: Gabion Basket

Gabion Wires Box are made of heavy galvanized wire / ZnAl (Golfan) coated wire / PVC or PE coated wires, the mesh shape is hexagonal style. The Gabion Basket are used widely in slope protection, foundation pit supporting, mountain rock holding, river and dams scour protection
Gabion Basket Surface Treatment: Finish can be hot-dipped galvanized, galvanized aluminum alloy or PVC coated, etc.

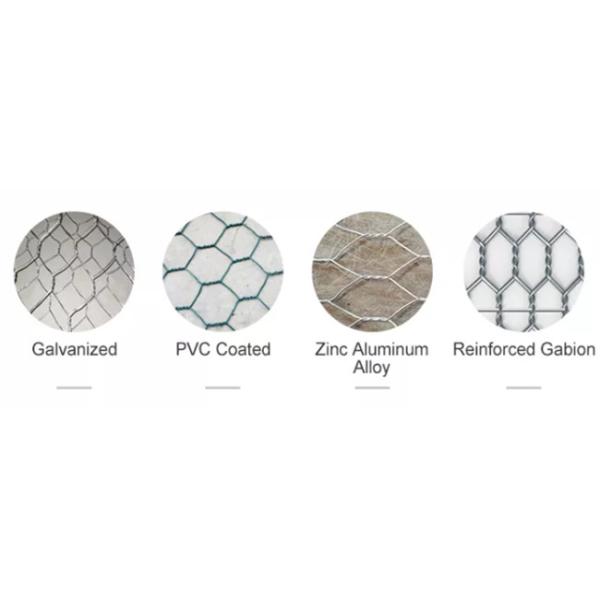

Gabion Mesh Basket Optional Types:

1: galvanized type

2: PVC coated type

3: Zinc Aluminum/ Alloy type

4: Reinforced gabion type

8x10cm Hole Gabion Mesh Basket Galvanized Anti Corrosive Stone Filled Q195

Gabion Mesh Basket Specifications:

Mesh Size	Galvanized Gabion( Dia.mm)	PVC Gabion (Inside Dia/Outside Dia.mm)	Max Wide Cut
60x80mm	Φ2.0-2.8	Φ2.0/3.0-2.8/3.8	4300
80x100mm	Φ2.2-3.2	Φ2.2/3.2-3.0/4.0	4300
80x120mm	Φ2.2-3.2	Φ2.2/3.2-3.0/4.0	4300
100x120mm	Φ2.4-3.5	Φ2.4/3.4-3.2/4.2	4300
100x150mm	Φ2.4-3.5	Φ2.4/3.4-3.2/4.2	4300
120x150mm	Φ2.7-4.0	Φ2.7/3.7-3.5/4.5	4300

Normal box size (m)	Mesh size (mm)	No. of diaphragms (no.)	Capacity per box (m3)
1.0x1.0x0.5	50x50 75x75 50x100 100x100	0	0.50
1.0x1.0x1.0		0	1.00
1.5x1.0x0.5		0	0.75
1.5x1.0x1.0		0	1.50
2.0x1.0x0.5		1	1.00
2.0x1.0x1.0		1	2.00
3.0x1.0x0.5		2	1.50
3.0x1.0x1.0		2	3.00
4.0x1.0x0.5		3	2.00
4.0x1.0x1.0		3	4.00

Woven type Gabion mesh basket:

8x10cm Hole Gabion Mesh Basket Galvanized Anti Corrosive Stone Filled Q195

Packing & loading pictures:

Application:

Retaining wall structures;

Prevention of current scour and erosion control;

Bridge protection;

Hydraulic structures, dams and culverts;

Embankment protection;

Rockfall prevention and soil erosion protection.

8x10cm Hole Gabion Mesh Basket Galvanized Anti Corrosive Stone Filled Q195
