200*200mm Concrete Reinforcement Wire Mesh Panels ODM For Building Vertical Walls

Name: 200200mm Concrete Reinforcement Wire Mesh Panels ODM For Building Vertical Walls
Brand: HBGB
Price: 1 USD

Wholesale 200*200mm Concrete Reinforcement Wire Mesh Panels ODM For Building Vertical Walls from china suppliers

Brand Name : HBGB

Model Number : GB-005

Certification : ISO 9001

Place of Origin : China

MOQ : 100pcs

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 3000 pcs per day

Delivery Time : 10-20 days

Packaging Details : in bundle or bulk

Product name : Concrete Reinforcement Welded Wire Mesh

Material : Q235

Mesh Type : Welded wire mesh

Surface treatment : untreatment

Direct factory : Yes

Wire diameter : 4-12 mm

Width : 0.5 - 2.4 m

Length : 2m, 4m, 6m, 8m, 12m

Opening shape : square, rectangle

Market : Australia, America, Europe and etc

Contact Now

Concrete reinforcing welded wire mesh for road and building reinforcement

Concrete reinforcing welded wire mesh Description:

Reinforcing mesh also know as reinforcement mesh, concret mesh, is made of round bar or ribbed bar. Reinforcing mesh is a welded wire fabric mesh. It has a square or rectangular- mesh grid pattern, produced in flat sheets.

Concrete reinforcing welded wire mesh Specifications:

Specification List of Reinforcing Mesh
Opening	Wire Diameter	Panel Size
150*150mm	4mm-12mm	2.2*5.8m
200*200mm	4mm-12mm	2.2*5.8m

Ribbed wire welded mesh panel(Black Wire Mesh)
Regular SIze	Wire Diameter	Wire Diameter
90''*240''	0.4GA-10GA	4''4'',6''6'',8''*8''

Types of Concrete reinforcing welded wire mesh:

· Square opening steel reinforced mesh: This mesh has stainless wires that runs vertically and horizontally supporting each other while forming small squares.
· Rectangular steel reinforced mesh: This mesh has stainless wires that runs vertically and horizontally supporting each other while forming smaller rectangular shapes.
· Welded steel reinforced mesh for building vertical walls.
· Customized types, also known as special steel reinforced mesh.

Concrete reinforcing welded wire mesh Applications:

Slab on Grade reinforcement

Floor and Walls Systems

Topping Slabs

Architectural precast wall panels

Tilt-up construction wall systems

Shear walls

Retaining walls

Mechanically Stabilized Earth (M.S.E.) reinforcement

200*200mm Concrete Reinforcement Wire Mesh Panels ODM For Building Vertical Walls

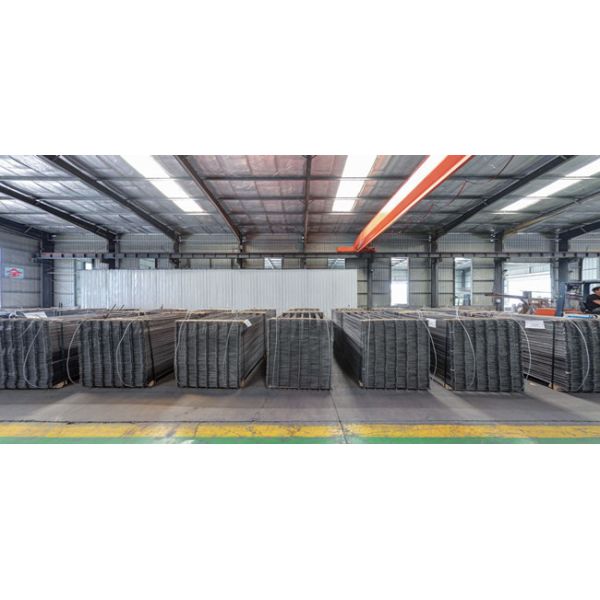

Pictures of Workshop and Producing:
